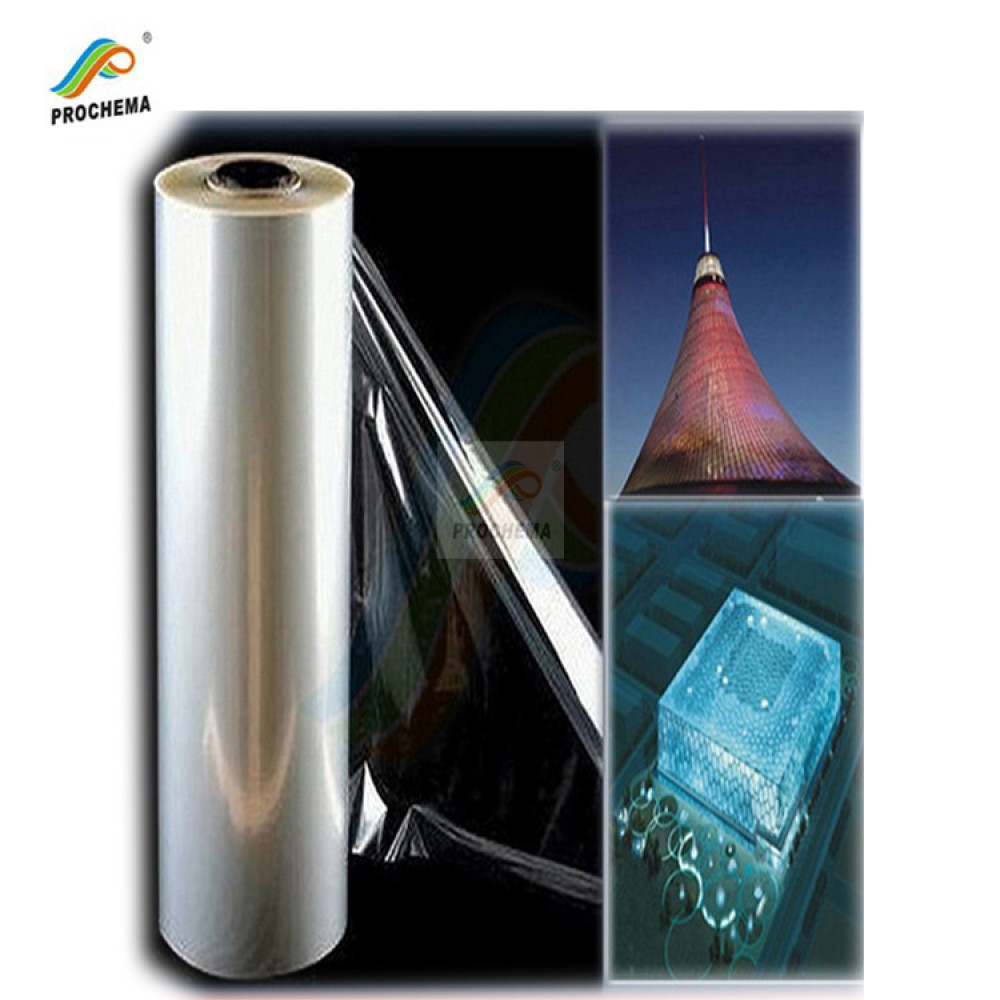

ETFE constructure greenhouse film
ETFE membrane has many advantages such as light weight, good flexibility, light transmittance, excellent weather resistance and good self-cleaning properties. So it has been widely used in stadium, airport, greenhouse and private club.
Compared with ordinary glass, glass is permanent in appearance, but the transmittance of light and waterproof joints must be maintained once every 5 years. The incombustible nifclean is incombustible in the atmosphere. The chemical resistance has excellent corrosion resistance to strongly acidic and alkaline chemicals and drugs. The non-adhesive fluorine resin has the characteristics of low surface tension, dirt such as snow, rain and the like is not easy to remain, and the skiing property is also very good. The self-cleaning property of reducing environmental load and long service life reduces the waste discharge to the minimum, and is a product beneficial to the environment.
It is suitable for the high performance requirements of the aircraft wall and other carbon firber forming isolation . flexible solar cell encapsulation ,FPC releasing encapsulation, Membrane structure and Agriculture greenhouse etc. We offer
Using fluoroplastic film can simplify the back-end processing technology ,improve proudcts quality.
ETFE fluorine plastic film with excellent chemical stability, heat resistance, not sticky, lubricity, pervious to light, light,
electric insulation, weather resistance and self-cleaning, aging resistance, light and low grinding.ETFE film has many excellent properties and used in many fields. Weather Resistance -- Used in 150 ℃ -180 ℃ Chemical Resistance -- Tolerance outside all kinds of harsh conditions Not sticky -- After mold, product surface bright and clean and no pollution
ETFE FILM is recognized as the release FILM commonly used in semiconductor packaging process. Film assisted forming (FAM) is a key process in modern integrated circuit manufacturing. Fluoropolymer films are used to increase output and machine productivity by reducing the peeling force required to remove the IC from the mold and eliminating the need to inspect or clean the mold between injection molding.
Properties:
1:non-stick -- Smooth surface, won't stick to any thing. Low surface energy, resistance to sand, dirt and other pollution.
2:corrosion resistant ---Won't be effected by any strong acids,alkali,oxidizers or almost solvents.
3:high/low temperature resistance: -100℃ to 150℃
4:High diaphaneity
5.Fireproof-- Ignition resistance UL94 Vo
6.abrasive resistance:--0.05
7.Aging resistance : More than 20-30 years long life outside .
8.Weather Resistance——UV resistance, stable mechanical properties after exposure outdoors over 20~30 years.
9.Light Transmittance——Superior transparency, flexible and lightweight over glass.
Application:
Widely Used in stadium, airport, greenhouse and private club
Carbon fiber releasing
Specification:
|
Grade
|
Thickness (um)
|
Width (mm)
|
Weight kg/roll
|
Length (m)
|
Length tolerance (mm)
|
Color
|
Surface condition
|
|
25C
|
25
|
1250
|
54.7
|
1000
|
+5，-0
|
transparent
|
Glossy/Matt
|
|
50C
|
50
|
1250
|
54.7
|
500
|
+5，-0
|
transparent
|
Glossy/Matt
|
|
75C
|
75
|
1250
|
19.2
|
300
|
+5，-0
|
transparent
|
Glossy/Matt
|
|
100C
|
100
|
1250
|
54.7
|
250
|
+5，-0
|
transparent
|
Glossy/Matt
|
|
150C
|
150
|
1250
|
65
|
200
|
+5，-0
|
transparent
|
Glossy/Matt
|
|
200C
|
200
|
1250
|
65
|
150
|
+5，-0
|
transparent
|
Glossy/Matt
|
|
250C
|
250
|
1250
|
54.7
|
100
|
+5，-0
|
transparent
|
Glossy/Matt
|
Technical data
|
No. |
Item |
Unit |
Technical data |
Test data |
|
1 |
Density |
g/cm3 |
1.75 |
ASTMD792 |
|
2 |
Melting point |
℃ |
260±10 |
DSC |
|
3 |
Heat shrink ratio |
% |
TD≤±5 |
Sample：100mm*100mm, |
|
MD≤±5 |
||||
|
4 |
Elongation at break |
% |
TD>200 |
ASTMD638 |
|
MD>200 |
||||
|
5 |
Tensile strength |
MPa |
TD>39.2 |
ASTMD638 |
|
MD>39.2 |
||||
|
6 |
· Flammability
|
|
V-0 |
UL-94 |
|
7 |
Top working temperature |
℃ |
150 |
|
|
8 |
light transmittance |
% |
≥91% |
ASTMD570 |
|
9 |
drug-fast |
|
excellent |
ASTMD543 |
|
10 |
Grind arenaceous value |
Ra |
1.5±1 |
DIN4768-1 |
