Product Description

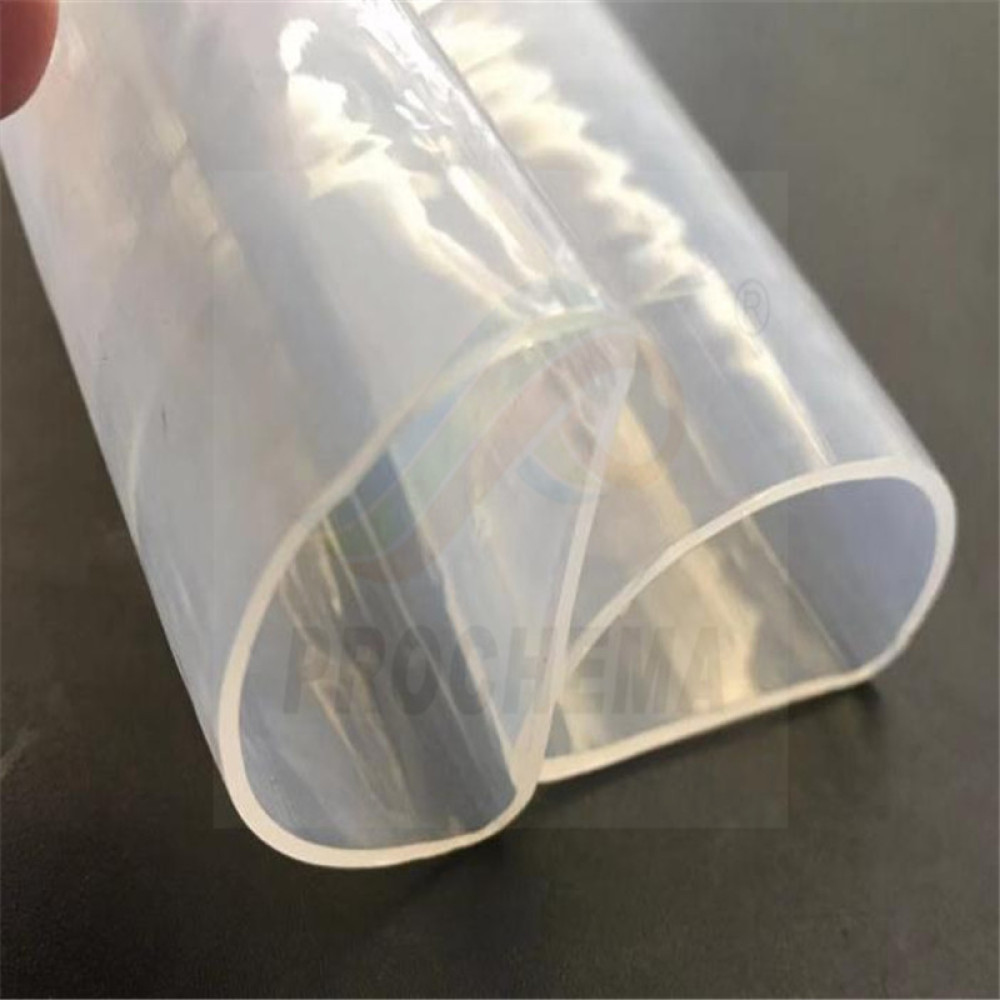

FEP Special D Shape UV Resistance Tube
Introduction:
FEP Tube (Fluorinated Ethylene Propylene) is the preferred material in production of small diameter tubing of continuous lengths. While some temperature resistance is sacrificed with FEP (to 400º F), its chemical and dielectric properties are similarto those of PTFE.
However, it has several properties PTFE does not have. FEP is one of the clearest plastics available on the market and FEP tubing can be supplied in long, continuous coils. Also, it can be welded and tubes can be sealed by melting.
However, it has several properties PTFE does not have. FEP is one of the clearest plastics available on the market and FEP tubing can be supplied in long, continuous coils. Also, it can be welded and tubes can be sealed by melting.
Additionally, the outstanding UV transmission rate makes FEP tubing a clear choice for UV water purification systems in straight lengths.
FEP pipe can also be welded and used with conventional threaded fittings.
FEP Tubing comes in a wide range of standard sizes and custom sizes are available upon request. FEP Tubing is also available in coiled tubing that can be ordered in various sizes, lengths, special sizes and colors to meet your needs.
FEP pipe can also be welded and used with conventional threaded fittings.
FEP Tubing comes in a wide range of standard sizes and custom sizes are available upon request. FEP Tubing is also available in coiled tubing that can be ordered in various sizes, lengths, special sizes and colors to meet your needs.
FEP tube is made from FEP resin and prepared by extrusion blowing technology. It can be used at the temperature range of -200oC through 200oC. There are two types of products, general-purpose FEP tube and electric-purposeFEP tube.
General-purposed FEP tube: outstanding chemical resistance to virtually all chemicals, used as a transparent, anti-corrosive and anti-stick material in the fields of chemical, food, textile and packing industry .
Electric-purpose tube has excellent electrical property and is used as dielectric material for capacitor and a layer of copper
clad laminate etc
Characteristic:
High and low temperature preservation
-85∼200oC high temperature No-begriming ,and no-stagnant in tube
Security and insulation
Under 60HZ60MHZ high and low temperature , permittivity is 2.1.
If firing, and will still insulate .
Volume resistance1018Ωm
Surface resistance2 X 1013Ω
Voltaic Arc165 seconds insulation
General-purposed FEP tube: outstanding chemical resistance to virtually all chemicals, used as a transparent, anti-corrosive and anti-stick material in the fields of chemical, food, textile and packing industry .
Electric-purpose tube has excellent electrical property and is used as dielectric material for capacitor and a layer of copper
clad laminate etc
Characteristic:
High and low temperature preservation
-85∼200oC high temperature No-begriming ,and no-stagnant in tube
Security and insulation
Under 60HZ60MHZ high and low temperature , permittivity is 2.1.
If firing, and will still insulate .
Volume resistance1018Ωm
Surface resistance2 X 1013Ω
Voltaic Arc165 seconds insulation
Erode preservation
Under high temperature,fluorin and alkali will reaction with PFA, no reaction with other organic acid.
Low water absorption 0.01%
Non firing
Non firing in air(oxygen index 95vol.%)
No poison
With physical inertia
High diaphaneity
Lowest refractive index in plastic material
Weather-assistant
Under ozone and sunshine for long time
Easy to process for second time
Self-close,,self-joining ,and self-turning
Under high temperature,fluorin and alkali will reaction with PFA, no reaction with other organic acid.
Low water absorption 0.01%
Non firing
Non firing in air(oxygen index 95vol.%)
No poison
With physical inertia
High diaphaneity
Lowest refractive index in plastic material
Weather-assistant
Under ozone and sunshine for long time
Easy to process for second time
Self-close,,self-joining ,and self-turning
Application :
widely used in pesticides, sulfuric acid filling machine, food fillers, oils filling machine, medical equipment, all kinds instrumentation, automotive oil tube ,mechanical,electrical appliances,automotive,aerospace,chemical,pharmaceutical,communications and other fields.such as food processing,high temperature fluid,chemicals and compressed gas.
* Cooling solution for the pharmaceutical industry, is highly corrosive liquid cooling conveyor
* Wire corrosion protection tube and transfer the liquid medium, ultra-pure water pipe and other equipment
* Cooling solution for the pharmaceutical industry, is highly corrosive liquid cooling conveyor
* Wire corrosion protection tube and transfer the liquid medium, ultra-pure water pipe and other equipment
Office-work machine 's roller packing
paper machine's roller packing
printing and dyeing machine's roller packing
printing machine roller packing
insulated jacket
the main insulation of rotor of the electric instrument
water treatment
make the magma sample in the field of oil field ect.
UV lamp protecting
paper machine's roller packing
printing and dyeing machine's roller packing
printing machine roller packing
insulated jacket
the main insulation of rotor of the electric instrument
water treatment
make the magma sample in the field of oil field ect.
UV lamp protecting
heat exchanger, steam piping
conveyer pipe with high purity reagent
conveyer pipe with various corrosive media
lepeth-sheath wire and cable with various frequency,
trough insulated pipe
trough insulated pipe used for submersible motor
pipe for air conditioner wiring accessories
pipe for O-style airproof loop with whole fluorin plasticUV lamp protective cover
conveyer pipe with high purity reagent
conveyer pipe with various corrosive media
lepeth-sheath wire and cable with various frequency,
trough insulated pipe
trough insulated pipe used for submersible motor
pipe for air conditioner wiring accessories
pipe for O-style airproof loop with whole fluorin plasticUV lamp protective cover
Specifications:
Out Diameter: ≤300mm Wall thickness: ≥0.1mm Length: Continues
Out Diameter: ≤300mm Wall thickness: ≥0.1mm Length: Continues
Data sheet:
|
Indicator
|
Unit
|
Indicator figure
|
|
|
|
density
|
g/cm3
|
2.14-2.17
|
|
|
|
Tensile strength
|
Mpa
|
14 |
|
|
|
Ultimate elongation
|
%
|
175
|
|
|
|
Temperature range
|
°C
|
- 200-200
|
|
|
|
Dielectricity strength
|
Kv/mm
|
15
|
||
