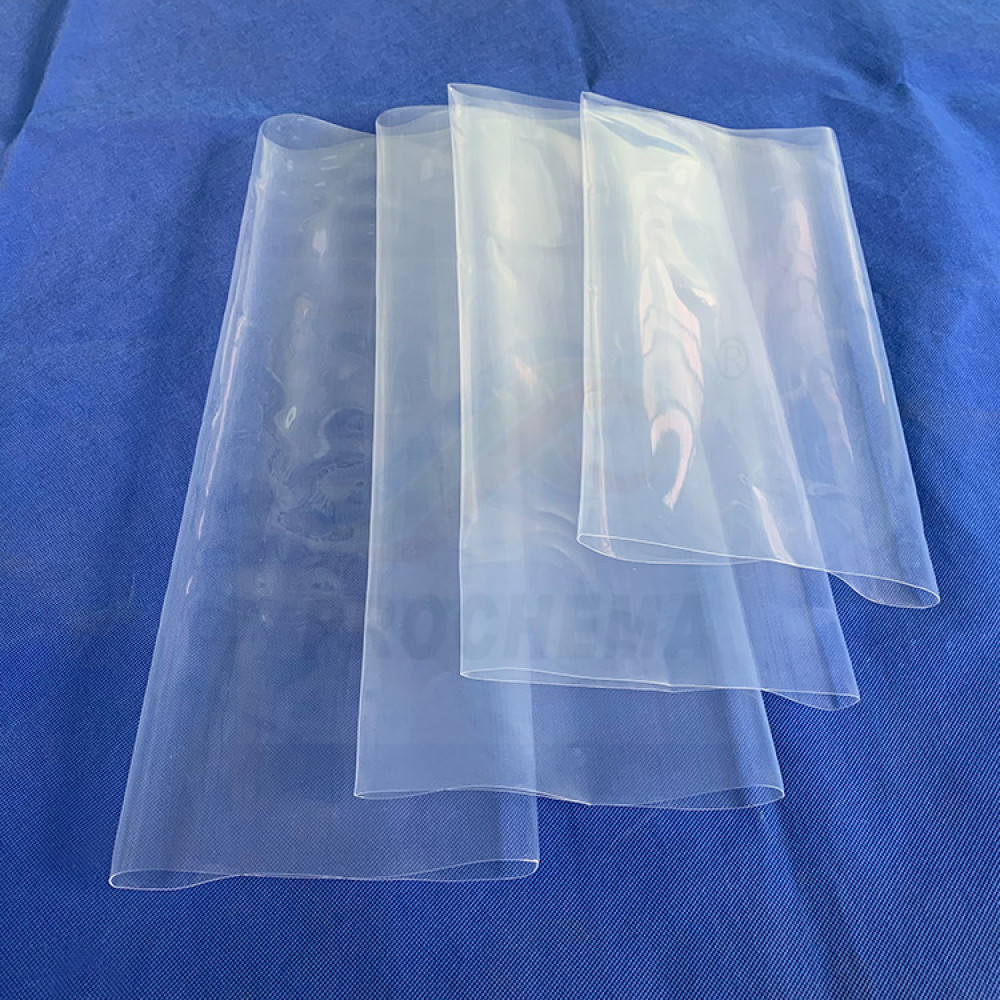

FEP flat shape UV lamp protective tube:
Specification: T3 T5 T6 T8 T10 T12 post shrink thickness 0.2-0.3mm Flate shape roll form . saving shipping cost and won't effect using ,easy to keep
Size can be customised
Lamp shape suport single round shape,U shape,H shape . even round circle shape .
However, it has several properties PTFE does not have. FEP is one of the clearest plastics available on the market and FEP tubing can be supplied in long, continuous coils. Also, it can be welded and tubes can be sealed by melting.
FEP & PFA has perfect anticorrosive properties and heat resistance and electric resistance. they are widely used in the fields of electrical,petrochemical,industrial,IT industrial.They are the perfect material so making VU lamp protection tube, anticorrosice tube
PFA is both transparent to UV-A and UV-C light and totally resistant to it as well as being temperature resistant. Therefore ,it makes an excellent material for shatter proofing UV lamps used in the food industry where glass free areas are required. Other plastic voerings enbrittle or discolour under the effect of the UV radiation . If the lamp suffers damage ,the glass is contained in teh shrunk on jacket.
Linear Lamps of any Size.
Circular and other shapes.
Fitted boots for U shaped lampes.
Low light transmission loss
Loss of UVA AND UVC light is much less compared with other polymer coatings. For our usual coatings,loss of UVA is arround 4% and UVC is 11%.We know of no other suitable flexible coatings that provide less loss of UV.
Characteristic:
High and low temperature preservation
-85∼200oC high temperature No-begriming ,and no-stagnant in tube
Security and insulation
Under 60HZ60MHZ high and low temperature , permittivity is 2.1.
If firing, and will still insulate .
Volume resistance1018Ωm
Surface resistance2 X 1013Ω
Voltaic Arc165 seconds insulation
Under high temperature,fluorin and alkali will reaction with PFA, no reaction with other organic acid.
Low water absorption 0.01%
Non firing
Non firing in air(oxygen index 95vol.%)
No poison
With physical inertia
High diaphaneity
Lowest refractive index in plastic material
Weather-assistant
Under ozone and sunshine for long time
Easy to process for second time
Self-close,,self-joining ,and self-turning
Application :
UV lamp protecting
|
Indicator
|
Unit
|
Indicator figure
|
|
|
|
density
|
g/cm3
|
2.14-2.17
|
|
|
|
Tensile strength
|
Mpa
|
14 |
|
|
|
Ultimate elongation
|
%
|
175
|
|
|
|
Temperature range
|
°C
|
- 200-200
|
|
|
|
Dielectricity strength
|
Kv/mm
|
15
|
|
|
