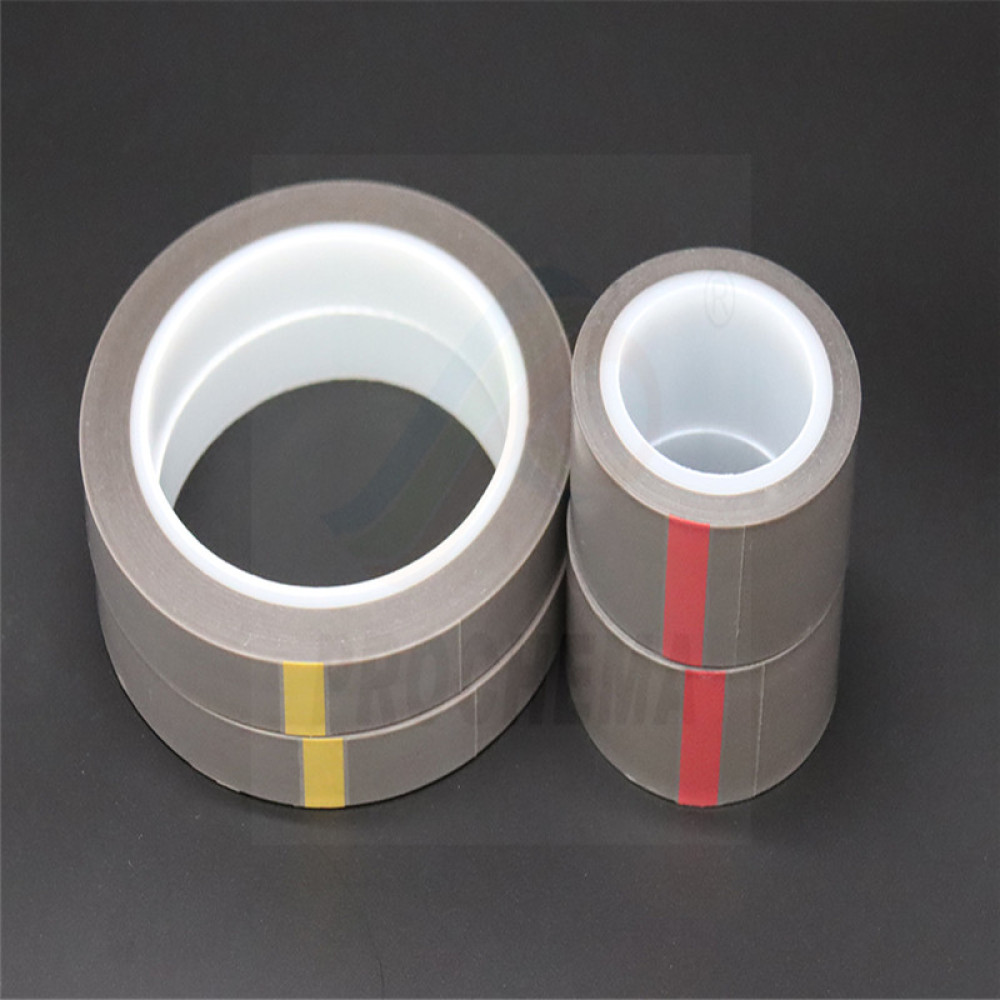

FEP high temperature cable adhesive tape FEP adhesive tape
FEP PTFE electrical insulation high temperature adhsive Tape
FEP high temperature and high voltage cable repair connection insulation waterproof F46 self sealing tape
High temperature FEP Tape ( H-Class ) Type M-F46M-1Cc180/Ss, H Class, is made from fep film coated with press sensititve silicone. F46 self-sticking tape have comparatively high abilities of oil resisting,temperature resisting and electricity insulating , and are applied for covering the junctions of the cables of the electrical machinery on the deep oil wells and the high temperature cable junctions , other electrical machines including electrical motors and appliances. Widely applies in the aviation, the navigation, the military insulates , the new material ,most advanced techniqueAlso domain.
|
Properties |
Unit |
Standard Value |
Test Value |
Standard Value |
|
|
Thickness |
mm |
0.100 ± 0.010 |
0.106 |
0.085± 0.010 |
|
|
F46 film Thickness |
mm |
0.080 |
0.078 |
0.050 |
|
|
Width |
mm |
15.0 ± 1.0 |
15.02 |
6 300 |
|
|
25. 0 ± 1.0 |
25.02 |
||||
|
25.4 ± 1.0 |
25.42 |
||||
|
Tensile strength |
N/25mm Width |
≥ 20.0 Longitudinal direction |
28.6 Longitudinal direction |
≥ 17.0 Longitudinal direction |
|
|
Elongation rate |
% |
≥ 200 Longitudinal direction |
355.9 Longitudinal direction |
≥ 200 Longitudinal direction |
|
|
Breakdown voltage |
KV |
≥ 6 |
12.7 |
≥ 5.1 |
|
|
Adhesion |
Tape and Tape |
N/25mm |
≥ 5.0 |
16 |
≥ 5.0 |
|
Tape and copper |
≥ 4.0 |
17 |
≥ 4.0 |
||
|
Temperature index number |
|
≥ 180 |
|||
|
Additional: |
|
Width ≤300 mm |
Storage life: 12months (below40) |
||
|
Unit length |
meter |
Unit length according to customer request design processing |
|||
FEP has very good charactor of heat resistance ,electric resistance,chemical resistance. It is widely used in Aviation spaceflight,instrument,Medical treatment Pharmacy,Electric instrument,Post &ccommunication,Petrochemical,Metallurgy &electric power,home electri products,illmination &illume.
|
regular size |
0.10mm×25mm×10m |
Color |
translucence |
|
Appearance |
two-tier structure |
working temperature |
-40~250℃ |
|
(made of high performance elastic stretchable insulation material and waterproof sealant) with anti-stick isolation paper. |
|||
|
product feature |
|||
|
Waterproof tape good self-melting, can be used for special waterproof and moisture-proof insulation seal, easy to stretch and wrap, strong plasticity, for the coating of irregular joints is very convenient, forming extrusion tightening effect;
Waterproof tape can be used for outdoor operation, with PTFE polytetrafluoroethylene pressure sensitive tape high temperature glass silk cloth pressure sensitive tape
|
|||
|
Application: |
|||
|
Used for communication equipment base station, antenna, peep line and other joints of waterproof insulation protection;
Waterproof sealing of end and joint of communication cable;
Used for the transformation of urban distribution network, the connection of overhead insulated wire, the waterproof sealing insulation of branch wire clip;
High voltage, high temperature underwater submersible motor, cable joint of oil field submersible pump cable or repair treatment, urban street light geographic cable joint treatment; Mines, oil fields, chemical and electric power facilities can not use the place of open fire.
|
|||
|
Direction for use: |
|||
|
Clean the dust and other sundries in the cable joint first;
Expand the tape, strip off the isolation paper and stretch the tape until the width is reduced to 1/2~3/4 of the original width.
Make the tape maintain a certain tensile strength to wrap and wrap in the way of overlap,1/2 lap;
After winding, it is advisable to extrude the adhesive tape by hand at the coated place to make the adhesive between layers close without air gap so as to fully bond;
In order to prevent the adhesive tape from being worn in the actual environment, PTFE polytetrafluoroethylene pressure-sensitive adhesive tape and high-temperature glass silk cloth pressure-sensitive adhesive tape should be used in its outer layer.
If necessary, the waterproof tape can be divided into different specifications to be suitable for smaller parts.
|
|||
