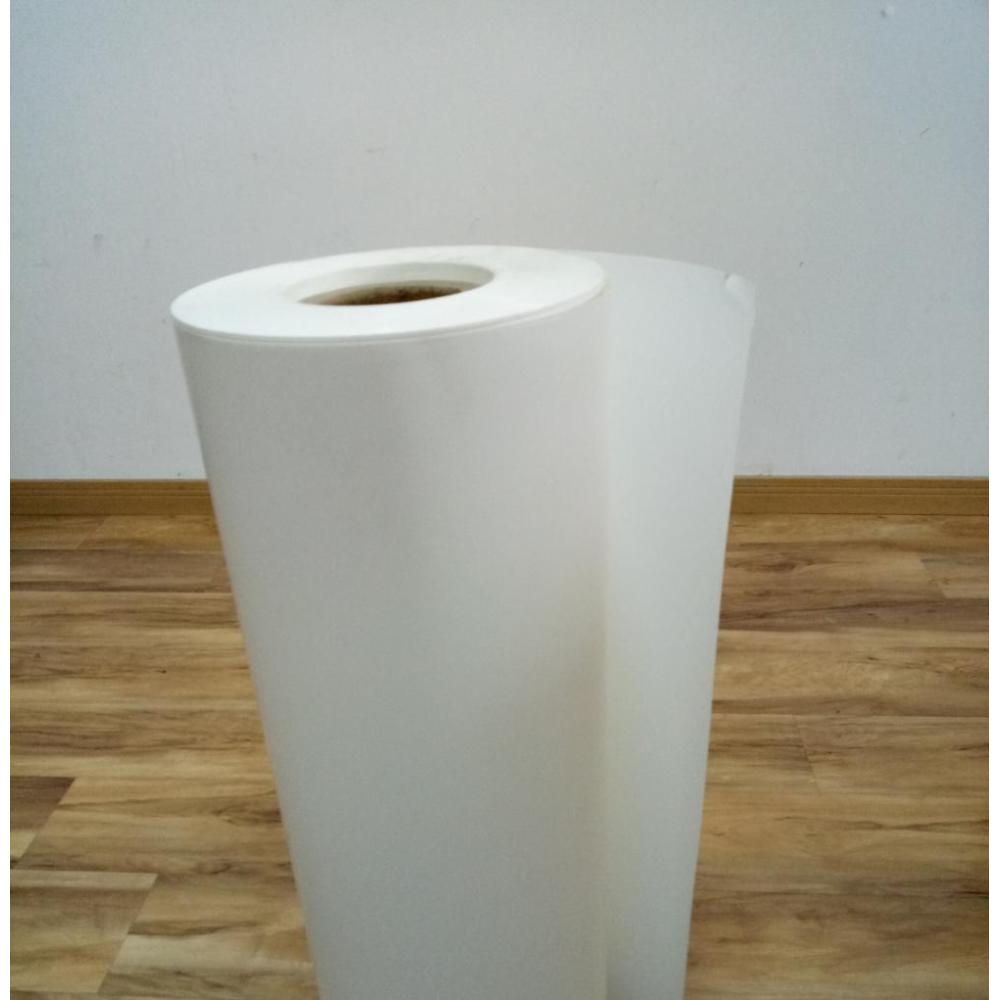

FRPP WT-10 is a halogen free flame retardant polypropylene film in roll and in sheet. Due to its excellent anti chemical property and electrical property, this film is a good insulation layer of electric car battery.
FRPP WT white PP film is available from thickness 0.05mm(min) -1.2mm upon market demand.
Roll supplied standard size
Thickness (mm)
N. Weight per roll (KG/roll)
Pound (LB)
Width × Length (mm × m)
Width × Length
Foot × Foot
0.05 (0.002")
50
110
610×1821
2′×5974′
0.075 (0.003")
60
132
610×1457
2′×4780′
0.1 (0.004")
60
132
610*1093
2′×3585′
0.125 (0.005")
80
176
610×1166
2′×3825′
0.175 (0.007")
80
176
610×833
2′×2732′
0.25 (0.010")
80
176
610×583
2′×1912′
0.38 (0.015")
80
176
610×384
2′×1259′
0.43 (0.017")
80
176
610×339
2′×1112′
0.45 (0.0177")
80
176
610×324
2′×1063′
0.50 (0.020")
80
176
610×292
2′×958′
0.76 (0.030")
80
176
610×192
2′×630′
1.0 (0.040")
80
176
610×146
2′×479′
General Tech Specification:
|
|
|
|
|
|
Property |
Test Method |
Unit |
Test value |
|
PHYSICAL |
|
|
|
|
Specific Gravity |
ISO 1183 |
— |
0.92±0.02 |
|
Thickness Tolerance ≦0.25mm >0.25mm |
|
|
+/- 6% +/-10%
|
|
MECHANICAL |
|
|
|
|
Tensile Strength |
ISO 527 |
MPa |
30 |
|
Elongation |
ISO 527 |
% |
50 |
|
THERMAL |
|
|
|
|
Heat Distortion Temp. |
ISO 75 |
℃ |
105 |
|
Vicat Softening Point |
ASTM D1525-07 |
℃ |
150 |
|
ELECTRICAL |
|
|
|
|
Dielectric Strength (@ 0.43mm) |
ASTM D149-97a |
kV/mm |
58 |
|
Volume Resistivity @25℃,50%RH |
ASTM D257-07 |
·cm |
1016 |
|
Surface Resistivity @25℃,50%RH |
ASTM D257-07 |
|
1015 |
|
FLAMMABILITY |
UL BULLETIN 94 |
|
|
|
UL Flammability ≦0.25mm >0.25mm |
UL94
|
VTM-0 V0 |
Note: The values in the typical property table are for reference only. For further requirements, please contact us.
