$185.00≥200 Square Meter
Business type:Manufacturer,Trade Company,Distributor/Wholesaler

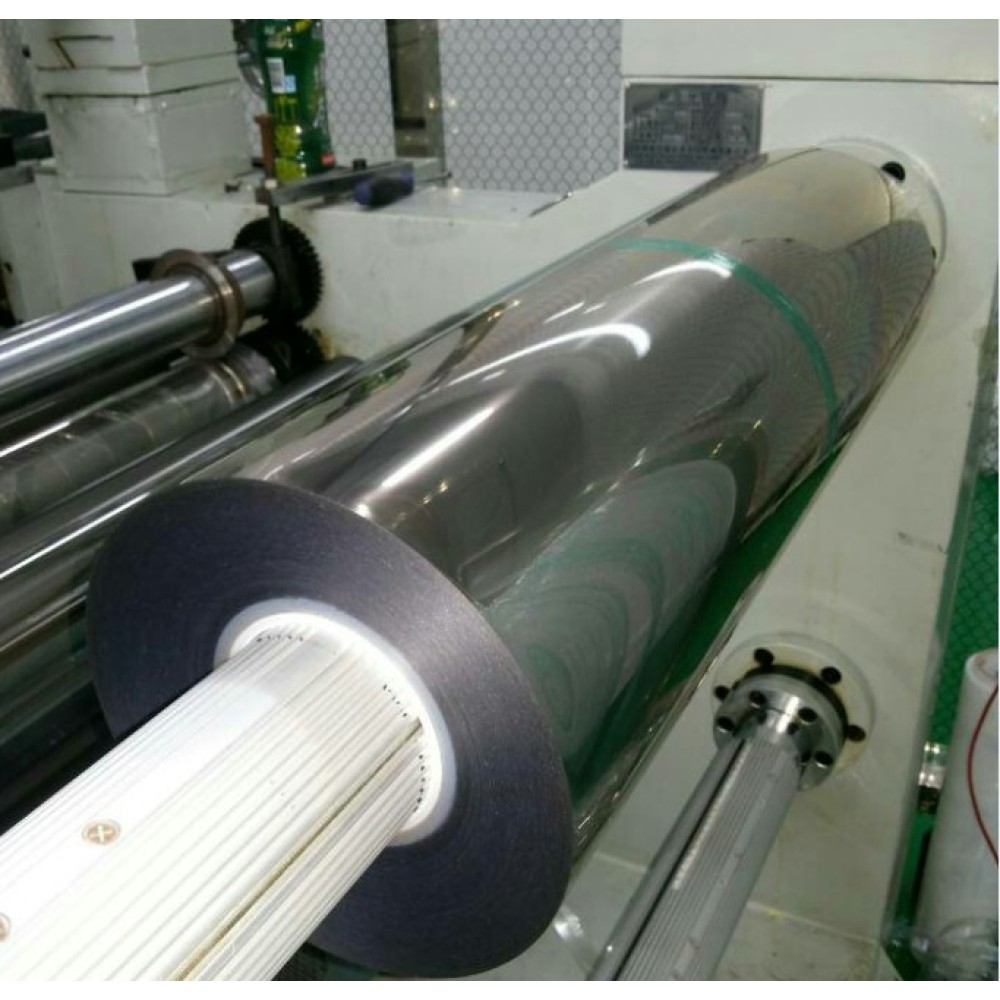

150 mesh copper grid pet film,with adhesive, can be directly sticked to existed glass/touch screen, used for EMI shielding, anti radiation, to keep information safety.
|
TECHNICAL DATA SHEET |
|
Physical property parameters |
||||||
|
item |
unit |
Performance Index |
Detection Method |
Remark |
||
|
EMI-150 |
||||||
|
Thickness |
Protective film |
μm |
50～60 |
ASTM D374 |
Optional |
|
|
First layer |
|
metal mesh layer |
|
|||
|
Substrate |
μm |
125+5 |
Material:PET |
|||
|
|
Ahesive |
|
|
Available |
||
|
Mesh shape |
|
45° |
|
|
||
|
Mesh width |
μm |
17 |
|
|
||
|
Mesh spacing |
μm |
143 |
|
|
||
|
Visible light transmittance |
% |
≥75 |
GB/T 2410-2008 |
|
||
|
Surface resistance (conductive side) |
ohm |
≤0.09 |
Four probe surface resistance tester |
|
||
|
Adhesion (conductive side) |
|
At least reach two-grade |
GB/T 9286-1998 |
|
||
|
Adhesive peel strength |
g/25mm |
≥100 |
GB/T 2792-1998 |
For glass panel |
||
|
Wet-heat resistant property |
Resistance variation |
% |
≤30 |
65℃、90% 100hours |
ΔR/R0 |
|
|
Light transmittance change |
% |
≤5 |
ΔT/T0 |
|||
|
SHIELDING EFFECT |
|
Main performance |
||||||||||||
|
Model |
Transmittance |
Frequency(DB) |
||||||||||
|
14K |
100K |
10M |
30M |
150M |
450M |
950M |
1G |
3G |
6G |
10G |
||
|
EMI-150（150Mesh） |
>75% |
11 |
13 |
38 |
49 |
76 |
63 |
55 |
53 |
44 |
40 |
35 |
|
APPLICATION |
All METAL MESH PET FILM products have stable resistance, very small tolerance, with super high transmittance 80%.
Deposited conductive coatings are very thin and are easily scratched or
cracked if handled improperly. When removing film from a roll, care
should be taken not to bend or crease it. It is important never to allow
the conductive side to come in contact with a surface, such as a table,
during processing operations.
|
COMPANY INTRODUCTION |
| CANTON FAIR SHOW |
Moire fringes can be completely avoided without adjusting the angle of the anti-glare shielding film, the conductive surface is blackened, and the performance is stable!
