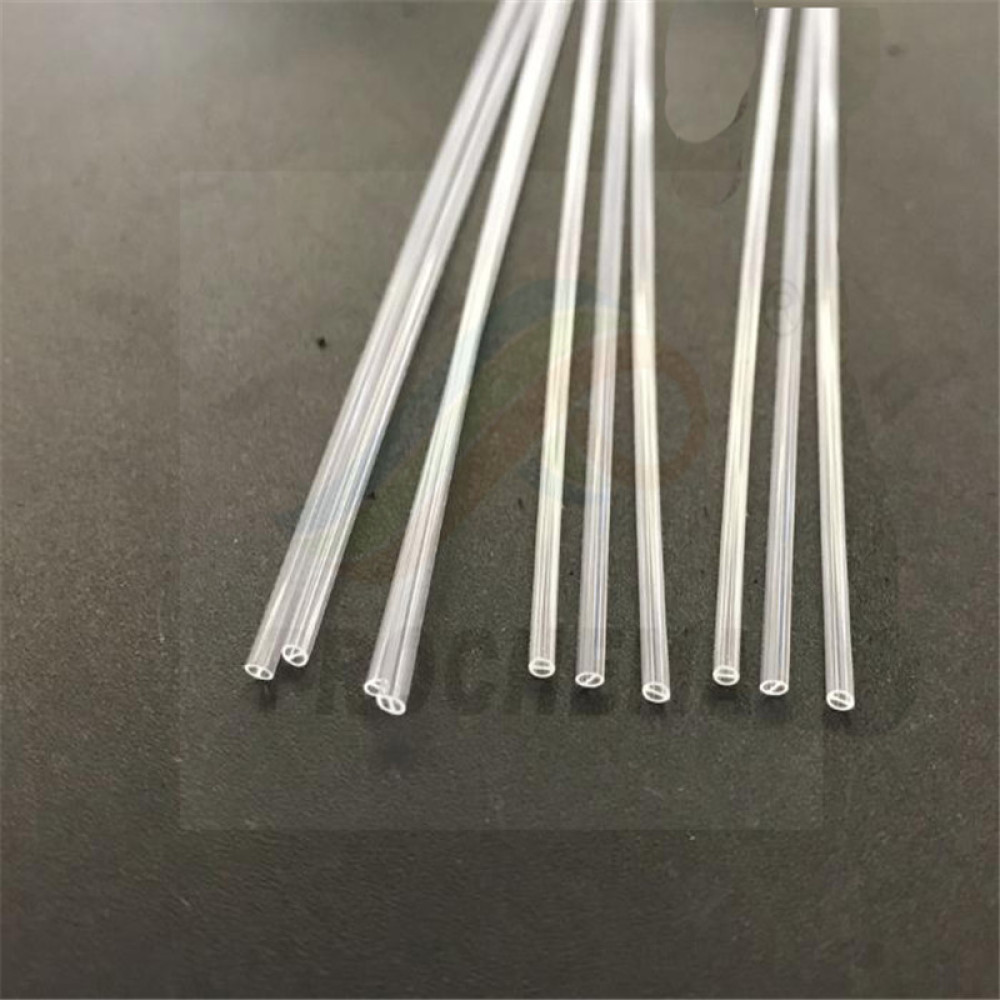

PFA Nontoxic Double-lumen Multi - cavity Tube
Material:FEP,PFA,ETFE,PE,PP,PVC,PEBAX,PA,POM,TPE,TPU
OD Size:From 0.5mm to 20mm
Application : used in medical,medicala equirpment, Optical fiber protection
Our multi-lumen tubing is often used in demanding applications such as minimally invasive surgery where the ultra-miniature lumens allow multiple functions or instruments to be placed within a limited space. Electronics engineers, on the other hand, combine the insulating properties of fluoropolymers with the endless range of profiles and lumen configurations to create high-performance insulated cable systems.For fluid handling, our multi-lumen tubing allows you to achieve the best possible flow rates. We custom manufacture multi-lumen tubing with numerous customized passages and tight tolerances. Customizable configurations are unlimited and can include complex multi-lumen profiles, diameter, number and geometry of the lumen(s), and material.
Multi-lumens are developed in different resins including PTFE, ETFE, FEP, PFA and more. Your final configuration will be specific to your needs, and all aspects will be kept confidential for each customer. Your finished multi-lumen product will have the highest quality anywhere.
solid adhesive for PTFE and also a good adhesive for laminating various materials. Its working temperature is up to 260 and is an ideal material for circuit board and flat cable.
Specification:
Introduction:
PFA is a copolymer of tetrafluoroethylene and perfluoroalkyl vinylether. It is a perfluoro polymer consisting of only carbon atoms and fluorine atoms without any hydrogen atom.
Properties :
High low temperature resistance:
-200--260°C,high temperature strength is 2 times higher than PTFE
Good adhesive and heat sealability with PTFE:
Below melting point ,it won’t stick any project.Above melting point, it has perfect adhesive property with PTFE, Metal and
self-adhesion(heat sealing).
None stick to water ,oil : water contact angle: θ=115o
Electric reliability,High dielectric
60HZ-60MHZ , Under the high and low temperature,the permittivity keeps 2.1 even if the surface damaged ,it won’t has conductive track.
Volume resistance>1018ΩM
Surface resistance>2*1013Ω
Voltaic Arc Resistance >165s No electric leakage
Weather resistance: It can be used in sunlight and ozone long
Anti-corrosion :Only in high temperature, Fluorin and alkalis can effect it,others acid, alkali or ester won’t effect it.
Fireproof : If firing, and will still insulate .
High diaphaneity
UL-Resistance : Good penetrability in ultraviolet radiation,and lowest refraction coefficient
widely used in pesticides, sulfuric acid filling machine, food fillers, oils filling machine, medical equipment, all kinds instrumentation, automotive oil tube ,mechanical,electrical appliances,automotive,aerospace,chemical,pharmaceutical,
communications and other fields.such as food processing,high temperature fluid,chemicals and compressed gas.
* Cooling solution for the pharmaceutical industry, is highly corrosive liquid cooling conveyor* Wire corrosion protection tube and transfer the liquid medium, ultra-pure water pipe and other equipment
Out Diameter: ≤300mm Wall thickness: ≥0.1mm Length: Continues
|
Item
|
Value
|
|
|
|
General purpose
|
electric purpose
|
|
Density g/cm3
|
2.12-2.17
|
2.12-2.17
|
|
Temperature range °C
|
-200 -+260
|
-200-+260
|
|
Longi&tray,shrink rate % ≤
|
3.0
|
3.0
|
|
Tensile strength Mpa ≥
|
14
|
14
|
|
Elongation at break % ≤
|
175
|
175
|
|
Elongation at break % ≤
|
4.9x104
|
4.9x104
|
|
Dielectric Constanct (106Hz)
|
|
2.15
|
|
Dissipation Factor 106Hz ≤
|
|
1x10-3
|
|
Volume resistance (Ω.m)
|
|
1x1014
|
|
Dielectric Strength TH ≤ 0.05mm
Th 0.05-0.1mm M/V TH ≥ 0.1mm |
|
100
75
50
|
|
|
|
|
|
|
|
|
