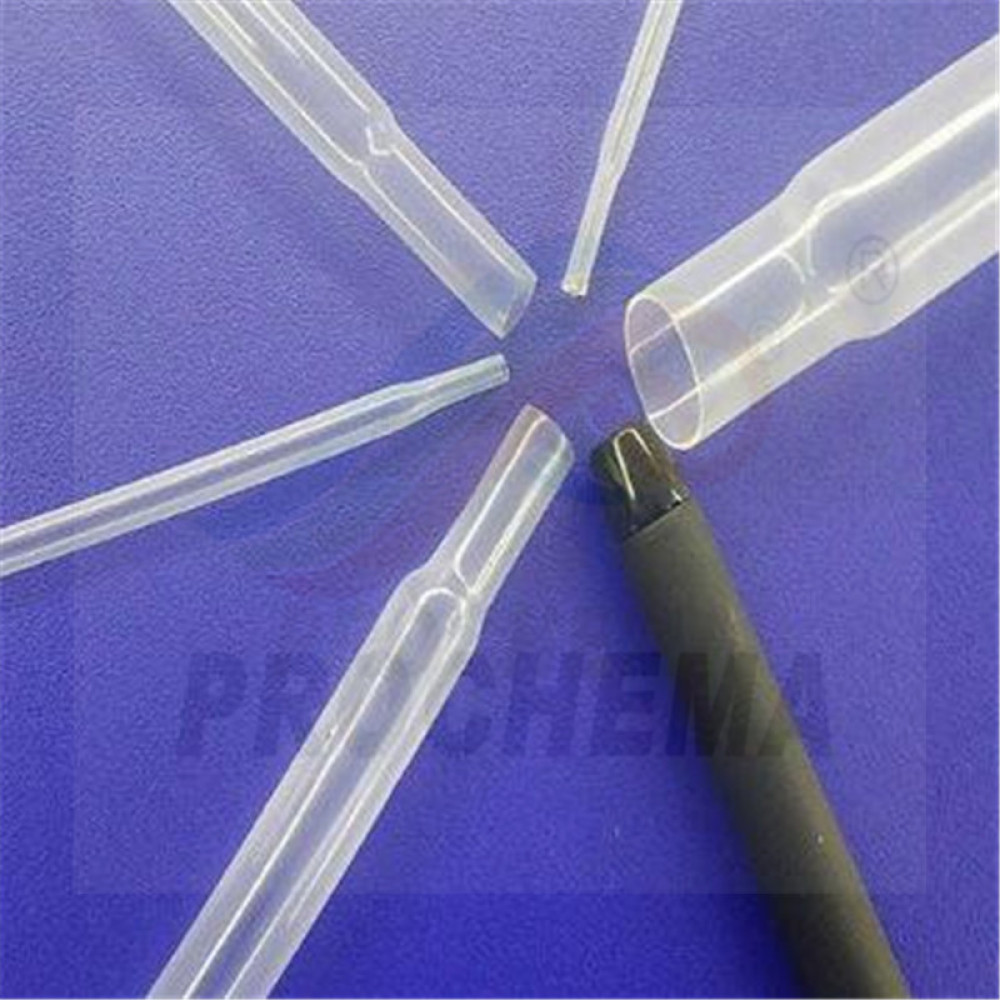

PTFE High temperature 4:1 heat shrinkable tube
PTFE heat shrink tube 1.7: 1 2:1 4:1
Teflon PTFE heat shrink tube is a highly flame retardant heat shrinkable tubing manufactured from modified PTFE .It Provides insulation and mechanical protection in severe chemical and thermal environments. Thin wall, high shrink ratio, flexible and transparent Major uses: electrical insulation, protection of electronic components, covering of hydraulic hose and couplings, prevention against contamination and corrosion High mechanical strength and extremely low coefficient of friction make it ideal for reducing damage to bearing shafts etc
Features
Continuous operating temperature: -65°C~260°C
Resistant to corrosion, strong acid, strong base, chemical reagents, and oil etc
Excellent Dielectric Insulation Properties
Excellent electrical performance that does not change with the temperature and frequency
Excellent mechanical performance, shock proof, high elasticity
Ultra low friction coefficient, highly flame retardant
Flammability: VW-1
Shrink Ratio: 1.7:1, 4:1
Standard color: clear/transparent
Property:
Specification :
Test Item
Value
Material
PTFE
Color
transparent
Operating temperature
-80°C~260°C
Flammability
UL94V-1
Shrinking temperature
280°C-320°C
Impedance
≥1018Ω.CM
Water absorption
≤0.01%
Longitudinal shrinkage
5%
Tensile strength
>2700psi
Elongation at break
>200%
Shrinkable Temperature ( ℃ )
≥ 200
Concentricity (%)
≥ 60
Radial Shrink Range (%)
≥ 45
Ultimate Elongation Ratio
300
Operate Temperature Range
-80 ℃ ~280 ℃
Coefficient of Dynamic Friction
0.1
Longitudinal Change (%)
≤ 10
Specific Gravity (g/cm 3 )
2.16
Aging in Circulating-air Oven
300 ℃
Tensile Strength (MPa)
20.5
Aged Tensile Strength Break Elongation
20 200
Impact Strength
-No Break -107
Volume Resistivity ( Ω. cm)
>10
Flexural Modulus (MPa)
400
Breakdown Strength (KV/mm)
30
Hardness (Shore D)
85
Flammability
VW-1
Softening Point ( ℃ )
350
Operate Temperature ( ℃ )
-280~300
Flammability
VW-1
Dissipation Factor
0.0002
Weather Resistance
No Break
Dielectric Constant
2.1
Original Volume Resistivity ( Ω.cm)
1018
Arc Resistance
300
Solvent Resistance
Excellent
Chemical Resistance
Excellent
