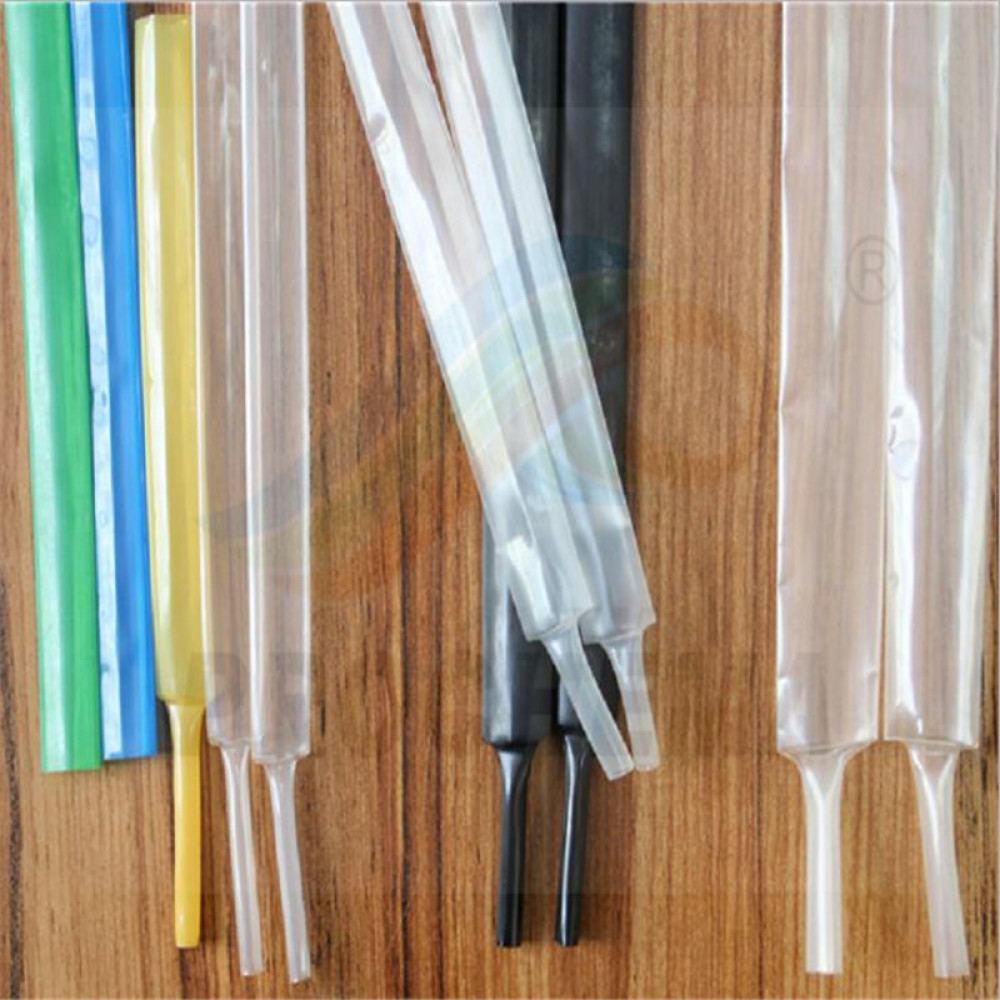

PTFE Low Friction Flame Retardant 2:1 Shrinkable Tube
PTFE heat shrink tube 1.7: 1 2:1 4:1
Teflon PTFE heat shrink tube is a highly flame retardant heat shrinkable tubing manufactured from modified PTFE .It Provides insulation and mechanical protection in severe chemical and thermal environments. Thin wall, high shrink ratio, flexible and transparent Major uses: electrical insulation, protection of electronic components, covering of hydraulic hose and couplings, prevention against contamination and corrosion High mechanical strength and extremely low coefficient of friction make it ideal for reducing damage to bearing shafts etc
Features
Continuous operating temperature: -65°C~260°C
Resistant to corrosion, strong acid, strong base, chemical reagents, and oil etc
Excellent Dielectric Insulation Properties
Excellent electrical performance that does not change with the temperature and frequency
Excellent mechanical performance, shock proof, high elasticity
Ultra low friction coefficient, highly flame retardant
Flammability: VW-1
Shrink Ratio: 1.7:1, 4:1 2:1
Standard color: clear/transparent
Property:
| Test Item | Value |
| Material | PTFE |
| Color | transparent |
| Operating temperature | -80°C~260°C |
| Flammability | UL94V-1 |
| Shrinking temperature | 280°C-320°C |
| Impedance | ≥1018Ω.CM |
| Water absorption | ≤0.01% |
| Longitudinal shrinkage | 5% |
| Tensile strength | >2700psi |
| Elongation at break | >200% |
Specification :
| Shrinkable Temperature ( ℃ ) | ≥ 200 | Concentricity (%) | ≥ 60 |
| Radial Shrink Range (%) | ≥ 45 | Ultimate Elongation Ratio | 300 |
| Operate Temperature Range | -80 ℃ ~280 ℃ | Coefficient of Dynamic Friction | 0.1 |
| Longitudinal Change (%) | ≤ 10 | Specific Gravity (g/cm 3 ) | 2.16 |
| Aging in Circulating-air Oven | 300 ℃ | Tensile Strength (MPa) | 20.5 |
| Aged Tensile Strength Break Elongation | 20 200 | Impact Strength | -No Break -107 |
| Volume Resistivity ( Ω. cm) | >10 | Flexural Modulus (MPa) | 400 |
| Breakdown Strength (KV/mm) | 30 | Hardness (Shore D) | 85 |
| Flammability | VW-1 | Softening Point ( ℃ ) | 350 |
| Operate Temperature ( ℃ ) | -280~300 | Flammability | VW-1 |
| Dissipation Factor | 0.0002 | Weather Resistance | No Break |
| Dielectric Constant | 2.1 | Original Volume Resistivity ( Ω.cm) | 1018 |
| Arc Resistance | 300 | Solvent Resistance | Excellent |
| Chemical Resistance | Excellent |
|
