0.01-0.5mm PTFE Super Thin High Temperature Film

Price:

$20.00

≥100 Kilogram

Mianyang Prochema Commercial Co.,Ltd.

22 YRS

Mianyang, Sichuan, China

Business type:Manufacturer,Trade Company,Distributor/Wholesaler

Visit The Store

Basic Info

Place of Origin

China

Payment Type

L/C,T/T,D/P,Paypal

Incoterm

FOB,CFR,CIF,EXW,FCA,CPT,CIP

Certificate

MSDS

HS Code

39209910

Transportation

Ocean,Land,Air

Port

Shanghai,Shenzhen

View All Details

Product Description

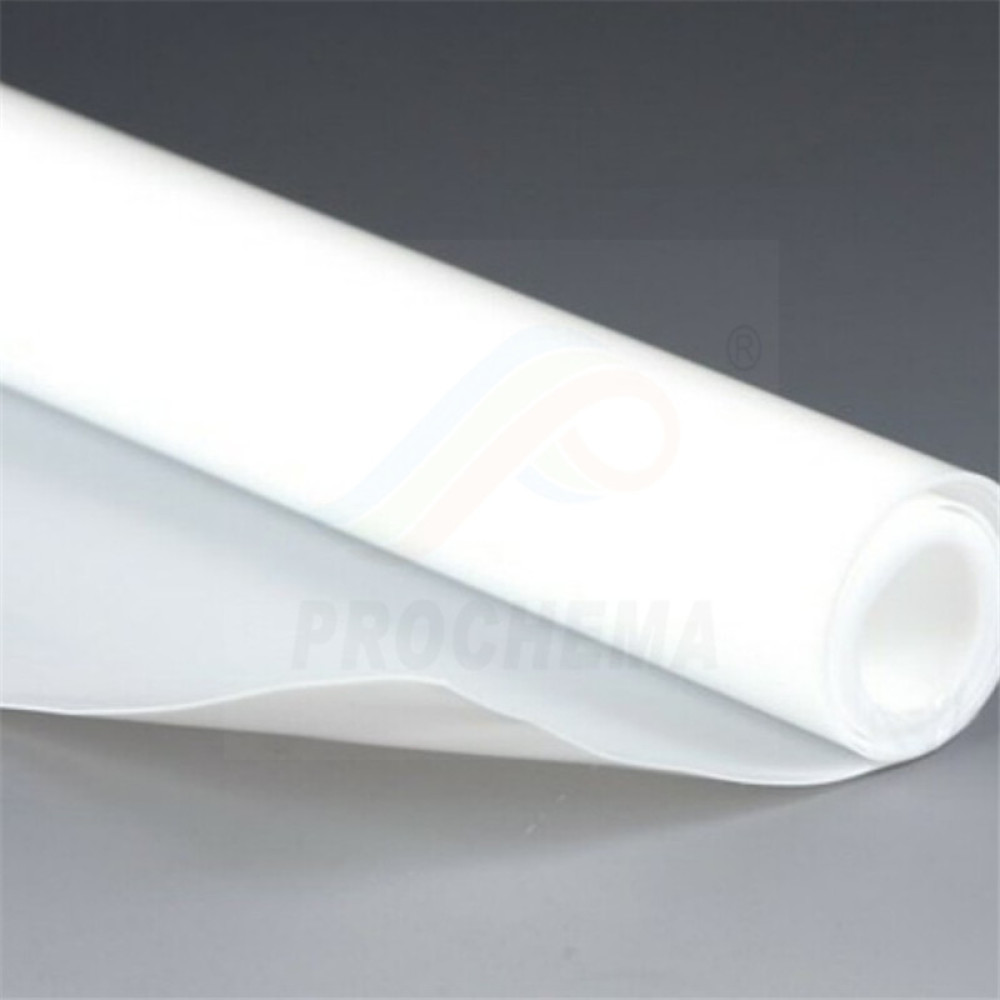

0.01-0.5mm PTFE Super thin high temperature film

PTFE Anticorrosive Dielectric Non-stick Film

Polytetrafluoroethylene film is made of suspended polytetrafluoroethylene resin by moulding, sintering and cooling into blank, and then by turning and rolling

Manufactured with excellent dielectric properties, non - aging, best corrosion properties and wide range of service strength. The film is non - directional film, non - directional film is developed into directional and semi - directional film by pressure. Polytetrafluoroethylene film has high tensile strength,

It is mainly used for capacitor medium, wire insulation, electrical instrument insulation and sealing gasket etc.

It is also possible to fill the polytetrafluoroethylene wool embryo with toner, copper powder, graphite, polybenzene and so on to make different colors or improve the hardness and extract high temperature resistance, wear resistance and other properties of the turning film.

Ptfe film is made by moulding PTFE resin, sintering, cooling into blank, then turning, calendering. The film turned into a non - directional film, non - directional film after calendering into a directional film. Nondirectional film calendering is 1.1-1.8 times as semi-directional film. Ptfe film is used for capacitor medium, wire insulation, electrical instrument insulation, sealing gasket. It has high crystallinity, tightly oriented molecular arrangement and small void ratio, so PTFE is greatly improved. Ptfe film consists of PTFE color film, PTFE activation film and PTFE white film.

Ptfe color film is a polytetrafluoroethylene orientated or unorientated color film in 13 colors, such as red, green, blue, yellow, purple, brown, black, orange and white, which is made of blank after moulding and sintering with a certain amount of colorant added by tetrafluoroethylene resin and then turned. Although PTFE color film has good electrical insulation after adding a certain amount of colorant, it is suitable for the insulation and classification of wires, cables and electrical parts. Ptfe activation film is a film made of PTFE film, filled film and color film, and then surface activation treatment. Pigment, glass fiber, carbon fiber, graphite, bronze powder and other fillers are added into the products. After activation treatment, the properties can be further improved. It can be combined with rubber, metal, etc., or special adhesive tape can be made to meet the design requirements. Widely used in light industry, military industry, aerospace, oil field and other fields.

Features

1. Non-adhesion: almost all materials are not bonded with PTFE coating film. Very thin films also show good inadhesion.

2, heat resistance: PTFE film has excellent heat resistance and low temperature resistance characteristics. It can withstand high temperature to 300℃ in a short time, and can be used continuously between 240℃~260℃ in general, with significant thermal stability, it can work at the freezing temperature without embrittlement, and does not melt at high temperature.

3. Sliding property: PTFE film has a low friction coefficient. The friction coefficient changes when the load slides, but the value is only between 0.05 and 0.15.

4, moisture resistance: PTFE coating surface does not touch water and oil, production operation is not easy to touch the solution, if there is a small amount of dirt, simply wipe can be removed. Short downtime saves time and improves work efficiency.

5. Wear resistance: excellent wear resistance under high load. Under a certain load, it has the dual advantages of wear resistance and non-adhesion.

6, corrosion resistance: PTFE is almost not subject to drug erosion, can withstand in addition to molten alkali metal, fluoride media and higher than 300℃ sodium hydroxide all strong acid (including aqua aqua), strong oxidant, reducing agent and various solvents, can protect parts from any kind of chemical corrosion.

Application

Gasket seals and lubricating materials for work in a variety of media, and electrical insulation for use at a variety of frequencies. Dielectric, cable insulation, electrical instrument insulation, etc

Specification :

PTFE thin film : 0.01-0.5mm x 1500mm width

Type	Thickness	Width	Length
PTFE oriented film	0.015-0.5	10-120	Customised
PTFE semi-directional film	0.03-0.1	30-120	Customised
PTFE non - oriented film	0.03-0.5	30-1500	Customised

Item	Unit	Data
Density	g/cm3	2．1-2．3
bending strength	Mpa	11-14
tensile strength	MPa	21-28
elongation at break	%	≥200
friction coefficient	/	0.04
water absorption	%	<19
dielectric strength	KV/mm	18
operating temperature	℃	-180-260
melting temperature	℃	325

Super Thin PTFE Anticorrosive Film 0.01 x 1500mm0.01-0.5mm PTFE Super Thin High Temperature Film0.01-0.5mm PTFE Super Thin High Temperature Film0.01-0.5mm PTFE Super Thin High Temperature Film0.01-0.5mm PTFE Super Thin High Temperature Film0.01-0.5mm PTFE Super Thin High Temperature Film0.01-0.5mm PTFE Super Thin High Temperature Film0.01-0.5mm PTFE Super Thin High Temperature Film0.01-0.5mm PTFE Super Thin High Temperature Film0.01-0.5mm PTFE Super Thin High Temperature Film

Q: What's your supportive policy for distributors in overseas market?

A:We support in many aspects including marketing, promotion, product developmentimprovements
