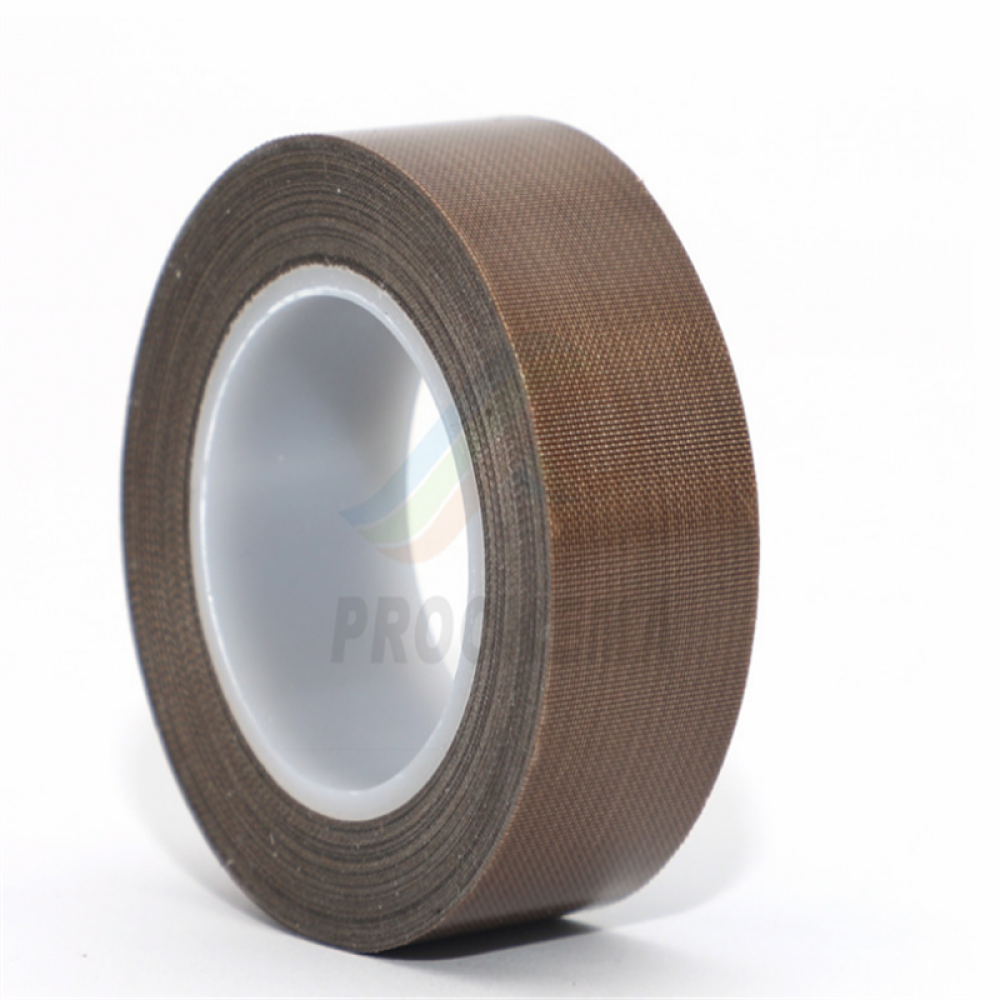

Acid Alkali Corrosion Resistant PTFE Fabric Adhesive Tape

PTFE high temperature adhesive tape   High temperature resistant special wire and cable pipeline repair corrosion resistant waterproof sealing tape adhesive tape

   PTFE coated fiberglass one side silicone pressure sensitive adhesive tapes for temperature reisstance up to 260 centigrade.   This tape are used in sealing of polymer film in FFS, Impluse sealer, Band Sealer and Bags making machine. During this  operation is made more efficient, if the sealing bars are convered with the strips of the ptfe coated fiberglass fabric  and ptfe coated fibergalss fabric one side  adhesive, which is a very good heat conductor and gives non stick surface.



  F4 PTFE Tape ( H-Class ) Type M-PTFEC, This product is PTFE   resin the agglutination reaction coagulates under the extremely huge pressure in the high temperature environment. In a lathe rotation situation next processing, Cutter The cent slice。F4 self-sticking tape have comparatively high abilities of oil resisting,temperature resisting and electricity insulating , and are applied for covering the junctions of the cables of the electrical machinery on the deep oil wells and the high temperature cable junctions , other electrical machines including electrical motors and appliances. Widely applies in the aviation, the navigation, the military insulates ,Also the new material , most advanced technique domain.

Main Features of High Temperature Resistant Adhesive PTFE Tape:
- Chemical resistance
- Wear resistance
- High temperature resistance
- High strength
- Excellent electrical insulation properties
- Good thermal conductivity;
- Easy fit and no adhesive residue



Application range of High Temperature Resistant Adhesive PTFE Tape:
1.For molding: mold-releasing sheets.
2.For printing: drying screen-printing machines.
3.For apparels: adhesive interlining belts.
4.For food processing: heat sealers, frozen food transportation, defrosting belt and baking belt.
5.For packing: shrink film packaging and side band sealing.

 -Easy release surface for heat sealing and packaging machines;

- Ironing and pressing equipment;

- Covering drying cylinders;

- Lining chutes, release surface on bonding tools;

- PVC welding release fabric.

Properties	Unit	Standard Value	Test Value	Standard Value
F4 film Thickness	mm	0.12 ± 0.010	0.124	0.080 ± 0.010
Width	mm	25. 0  ±  1.0	25.02	0 - 150
		25.4  ±  1.0	25.42
Tensile strength	N/25mm Width	≥  88.0    Longitudinal direction	115.3 Longitudinal direction	≥  60．0 Longitudinal direction
Elongation rate	%	≥  150 Longitudinal direction	215.0 Longitudinal direction	≥  150 Longitudinal direction
Breakdown  voltage	KV	≥  10	13.5	≥   7
Temperature	℃	≥  180
Additional:		Width ≤150  mm	Storage life: 12months (below40℃)
Unit length	meter	Unit length according to customer request design processing



Product  name	PTFE tape
Material	Glass fiber cloth
Adhesive	Silicone
Thickness	0.13mm / 0.18mm/0.25mm
Width	10//13/19/25/30/38/50mm  or customized
Length	10m ,30m , 50m
Temperature resistance	-70℃- 300℃
Tensile strength	1700N/100mm
Adhesion to steel	28N/100mm~74N/100mm
Insulation	≥10¹² Ω
Friction coefficient	0.05-0.1
Application	Heat sealing of food, vacuum sealer, pharmaceuticals and packaging, various mechanical rollers requiring anti-adhesion, corrosion resistance and high temperature resistance.
