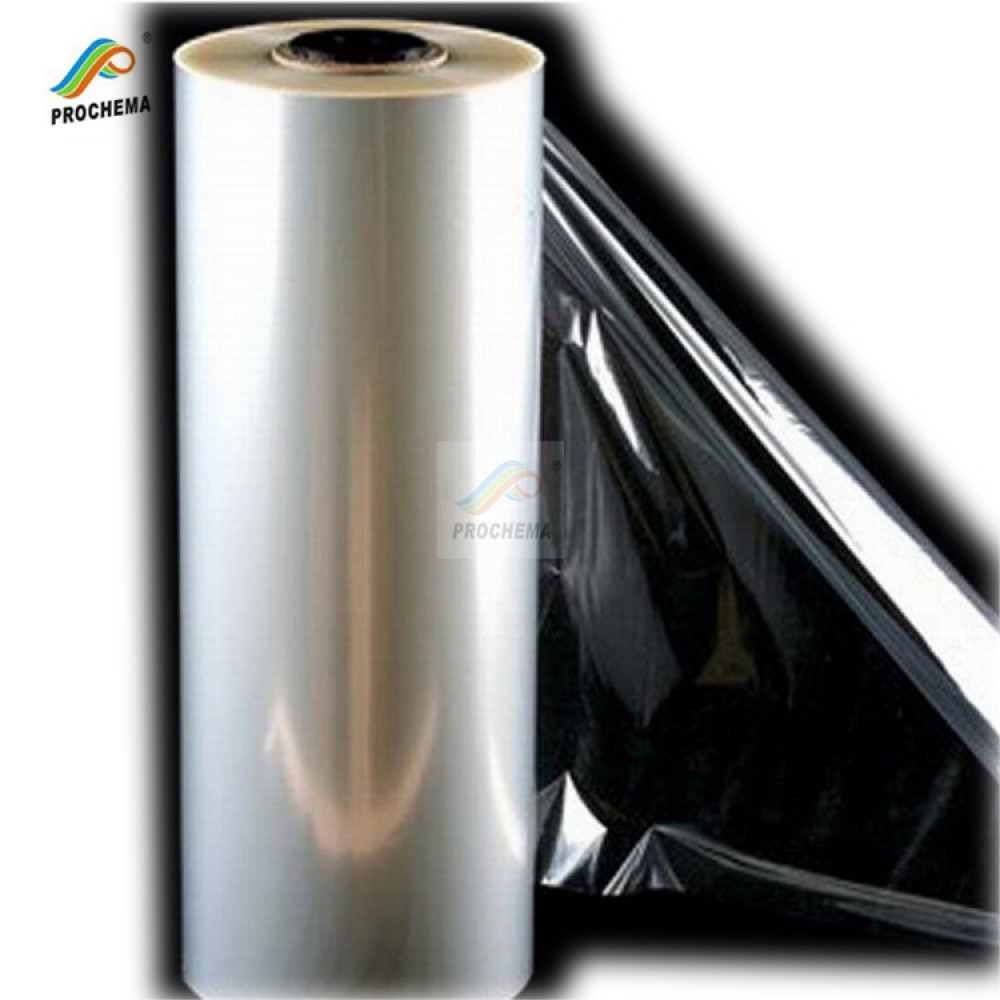

PVDF Multifunctional decorative composite film

      PVDF (polyvinylidene fluoride) is a kind of light fluoride material, with the working temperature ranging from -70 to 150 . It features superior corrosion resistance, mechanical property, electrical insulating property, low friction coefficient, weatherability, and radiation tolerance. Moreover, the tensile strength is two times higher than PTFE, the compressive strength six times higher than PTFE, and the abrasion resistance similar to nylon.

  Vivilux is a series of functional decorative film products with transparent PVDF film as its out layer(UV cut off and weathering resistance). The substrate layer is composed of various plastic sheet, such as PVC, PET, PETG, PO and PMMA etc., on top of which esthetic design is affiliated through gravure printing and hot pressing, i.e. colored pattern and various textures. The film features in weathering resistance, zero formaldehyde release, low VOC emission, zero heavy mental element, water proof, moth-proof and anti-flaming.

Product Specification

Length: 200~1,000m

Width: 500~1,300mm

Thickness: 100~300μm

Color, pattern and texture: Refer to the sample card

(Productcan be customized per request. Surface treatments are optional.)

  PVDF Properties:

1. Flame retardancy

Application:

semiconductor, liquid crystal device, etc. Electronic industry field, chemical device field, food processing machine, packaging machine various parts, pipes, seals, pump parts, rotating disc, valve, slide track, etc. used for non-photovoltaic applications, such as protect layer for colored metal plate or sheet, advertising light cases and other areas that need long-term resistance to light irradiation and outdoor weathering.

Main applications of PVDF :

Main Performance

1, appearance: uniform texture, smooth surface; color was white.

2, the mechanical properties with the following table

 High-speed rail, aircraft interior film

 For special transportation field, high-speed rail, aircraft to provide interior decoration film products, products meet TBT3237, CCAR25 performance test requirements.

Rv, yacht interior

Delicate decorative pattern provides diversified decorative effect for rV, yacht.
