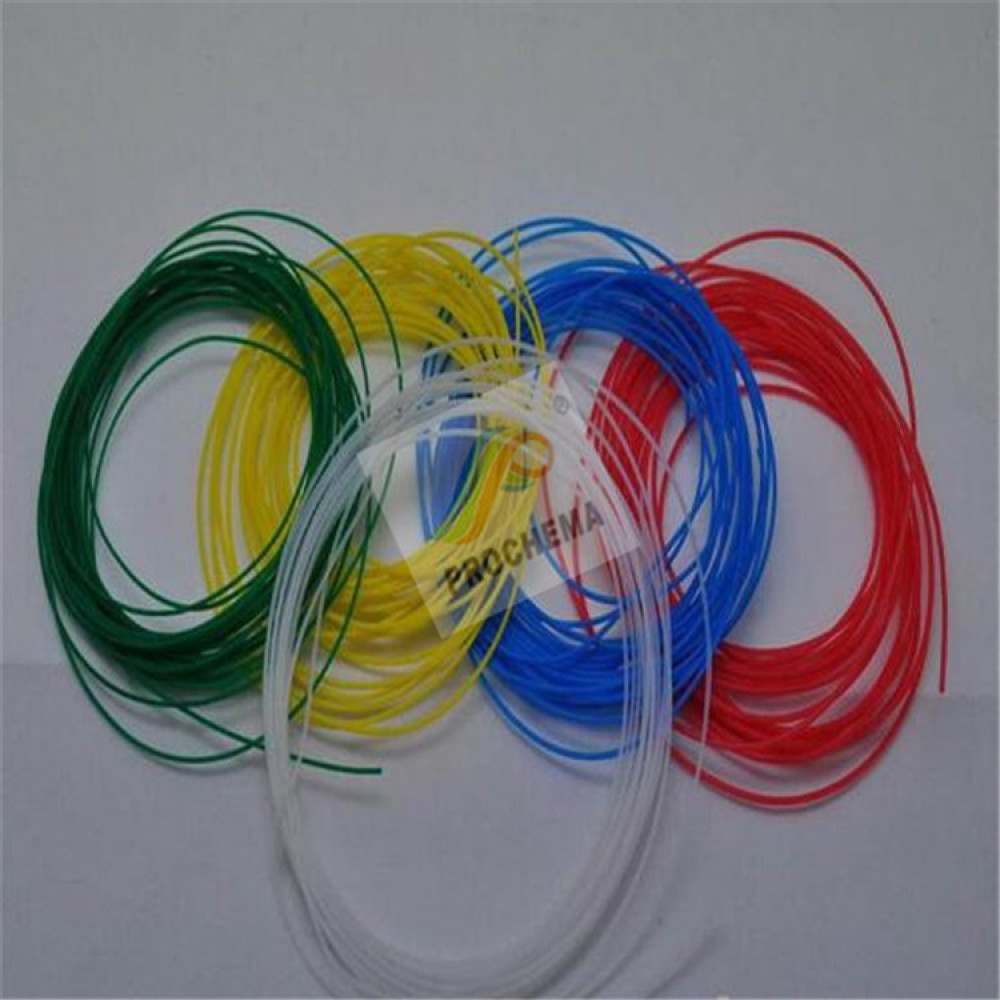

PVDF heat shrinkable anticorrosive tube
The transparent flame retardant PVDF thermal shrinkable tube is made of PVDF radiation modified by PVDF. It is used in the occasions of high temperature resistance and friction resistance of medical devices. It provides insulation protection, mechanical protection, chemical protection and stress relief for electronic components and wiring harness of medical devices
Product features
Technique Data
|
Performanace |
Index |
Test method |
|
tensile strength |
≥35MPa |
ASTM D 638 |
|
Elongation at break |
≥300% |
ASTM D 638 |
|
Elongation at break after thermal aging |
≥200% |
225℃×168h |
|
|
VW-1 |
UL 224 |
|
longitudinal shrinkage ratio |
-5%～+5% |
ASTM D 2671 |
|
volume resistivity |
≥1013Ω.cm |
ASTM D 876 |
|
cold bending of the flexible |
no cracking |
-55℃×4h |
|
thermal shock |
no cracking |
275℃×4h |
|
corrosivity |
non-corrosive |
ASTM D 2671 |
Specification :
|
Size |
ID(mm) |
Postshrink SIZE（mm） |
roll size (m/roll) |
|
|
ID |
Thickness w |
|||
|
Φ1.2 |
≥1.2 |
≤0.6 |
0.25±0.05 |
200 |
|
Φ1.6 |
≥1.6 |
≤0.8 |
0.25±0.05 |
200 |
|
Φ2.4 |
≥2.4 |
≤1.2 |
0.25±0.05 |
200 |
|
Φ3.2 |
≥3.2 |
≤1.6 |
0.25±0.05 |
200 |
|
Φ4.8 |
≥4.8 |
≤2.4 |
0.25±0.05 |
100 |
|
Φ6.4 |
≥6.4 |
≤3.2 |
0.30±0.08 |
100 |
|
Φ9.5 |
≥9.5 |
≤4.8 |
0.30±0.08 |
100 |
|
Φ12.7 |
≥12.7 |
≤6.4 |
0.30±0.08 |
100 |
|
Φ19.1 |
≥19.1 |
≤9.5 |
0.43±0.08 |
50 |
|
Φ25.4 |
≥25.4 |
≤12.7 |
0.48±0.08 |
50 |
|
Φ38.1 |
≥38.1 |
≤19.1 |
0.51±0.08 |
50 |
|
Φ50.8 |
≥50.8 |
≤25.4 |
0.58±0.08 |
50 |
