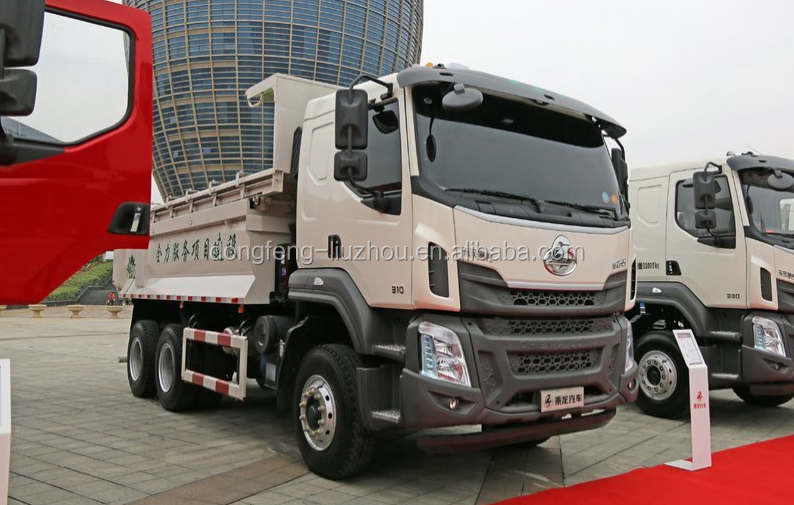

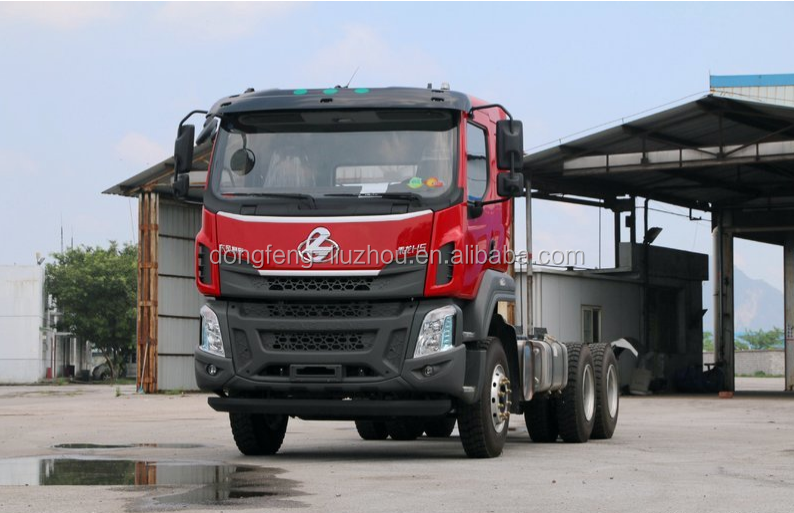

Dongfeng dump truck with high quality cheap price hot sales 6x4 dumping truck
Price:
-
$34500.001-9 unit
-
$34100.0010-19 unit
-
$33600.0020-29 unit
-
$33000.00≥30 unit
Close
Basic Info
Supply Ability
6000 Unit/Units per Year
Payment Type
L/C,D/A,D/P,T/T
Port
China sea port
View All Details
Product Description
Product Description
Dongfeng dump truck with high quality cheap price hot sales 6x4 dumping truck
| Model | TJ3389MP |
| Driving Type | 6*4,LHD, H5 cab |
| Use scope | Construction project, building constructions site, material transporations |
| Chassis Dimensions(mm) | |
| Overall chassis length | 8430*2545*3450 |
| Cab width | 2545 |
| Cab height (unladen) | 3450 |
| Wheel base | 3800+1350 |
| vehicle weights(kg) | |
| G.V.W | 250000 |
| Curb weight | 123700 |
| Payload weight | 20000 |
| Frame profile Dimensions(mm) | |
| Section height | 306 |
| Section thickness | 8+8 |
| Engine | |
| Type model | YC6MK375-33 |
| Emission level | EuroIII |
| Maximum power | 375hp |
| Maximum torque | 1700N.m/1100-1500rpm |
| Number of cylinders | 6 |
| Displacement (lit) | 10.338 |
| Clutch | |
| Plate's diameter | 430 |
| Operating system | Fush style |
| Gear box | |
| Type | 12JSD180T |
| Number of gears | 12 forward gears& 1 reverse |
| Axle | |
| Front Axle | 1*7000Kg |
| Rear Axle | styre 2* 16000 |
| main reducing ratio | 5.45 |
| Suspension | |
| Front suspension | 1*7000Kg |
| Rear suspension | styre 2* 16000 |
| Fuel Tank | |
| Type | Steel fuel tank, with lockable cap |
| Capacity | 350L aluminium alloy |
| Others | |
| Other options | Mechanical full floating cab mount, electrohydraulic flip, M7 adjustable air bag damping driver seat, double horse bolt, run drive shaft, Dalian plate, European swirl double channel intake pipe, desert air filter, 16mm thickened steel ring, 1800mm long front leaf spring, front stabilizer, laminated glass, Wabco valve (full car), leather imitation mahogany steering wheel, imitation mahogany interior decoration, front wheel pedal ring |
| Tyres / tyres qty. | 12.00R20-18PR / 6+1 |
| Cargo Body | |
| Dimensions(mm) | 5600*2300*1500 |
| Oil Cylinder | Haiwo 157 / front lifting |
