$15000.001-9 unit
-
$14600.0010-19 unit
-
$14100.0020-29 unit
-
$13500.00≥30 unit

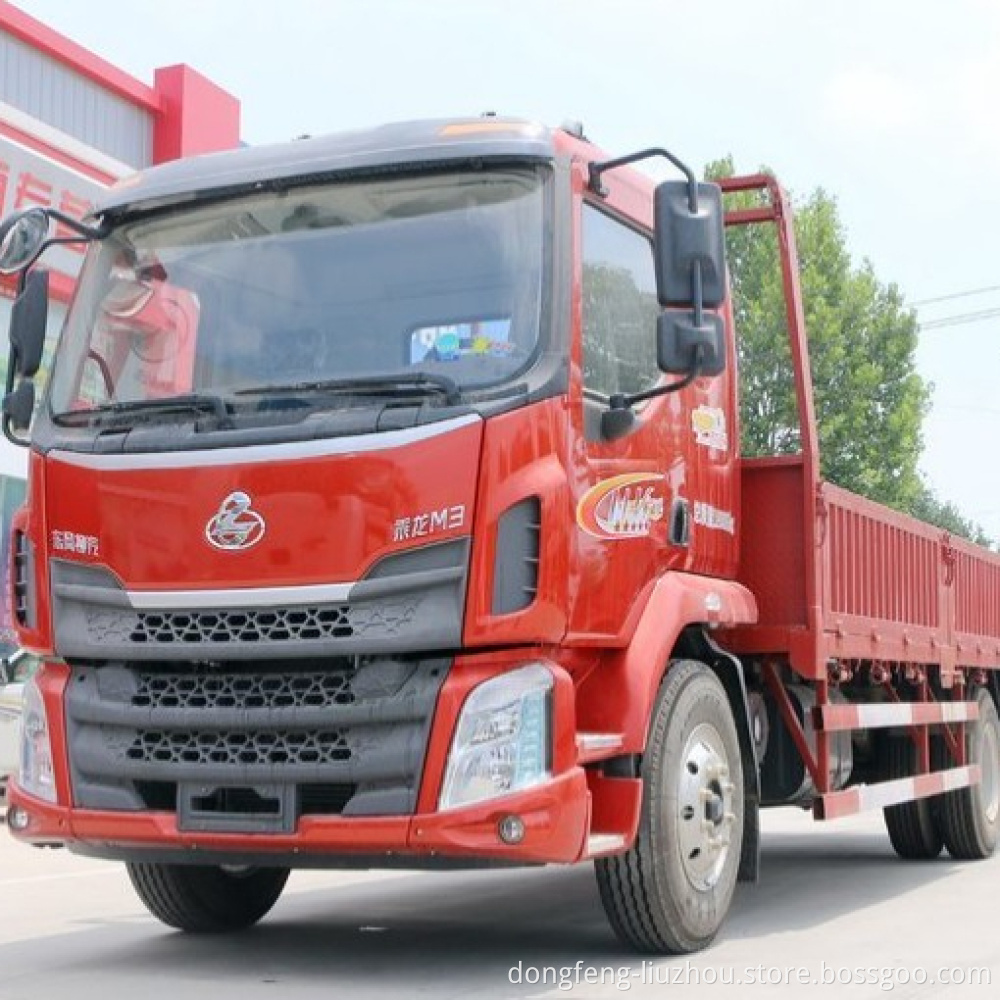

| Model | LZ1160M3AB |
| Model code | 1L3YS16A38C9BF1 |
| Max Payload | 10000kg |
| Chassis Dimensions | |
| Chassis Dimensions(L*W*H) | 6810mm*2265mm*2696mm |
| Wheel base | 3800 |
| Front/Rear wheel track | 1735mm/1800mm |
| Front/Rear overhang | 1270mm/1730mm |
| vehicle weights | |
| G.V.W | 16000kg |
| Curb weight | 4240kg |
| Frame profile Dimensions | |
| Frame width | 823mm |
| Section height | 231mm |
| Section thickness | 6mm |
| Engine | |
| Type | YC4S160-50 |
| Emission level | Euro 5 |
| Maximum power | 118Kw/2600rpm |
| Maximum torque | 550N.m/1300-1800rpm |
| Number of cylinders | 4 |
| Displacement | 3.767L |
| Cylinder bore×Stroke | 102mm×115mm |
| Clutch | |
| Plate's diameter | φ350mm |
| Operating system | Hydraulic control with air booster,pushing |
| Gear box | |
| Type | 8JS75TC |
| Number of gears | 8 forward gears& 2 reverse |
| Gear ratios | 7.34;5.24;3.76;2.82;1.95;1.39;1.00;0.79; r1=7.34;r2=1.95 |
| Axle | |
| Front Axle | Rigid stubaxle with double T-cross section,dram brake |
| 3t | |
| Rear Axl | Press welding shell, Single-stage reduction shaft, speed ratio:4.33. |
| 6t | |
| Suspension | |
| Front suspension | 8-Leaf spring with shock absorber |
| Rear suspension | 9+5-leaf spring |
| Battery | |
| Voltage | 24V |
| Battery capacity | 90Ah(2) |
| Fuel Tank | |
| Type | Plastic fuel tank |
| Capacity | 120L |
| Others | |
| Cab | L35 single-row cab, fixed cab suspension, torsion bar flip, multi-state switch, electric glass lifter, LCD liquid crystal instrument, MP3, air conditioner, laminated glass, central control lock. |
| Brake System | Full air brake system,split pneumatic circuit;parking spring brake acting on rear axles, exhaust brake. |
| Tyres | 8.25R16-14PR |
| Minimum turning circle | 7400mm |
| Minimum ground clearance | 200mm |
| Maximum driving speed | 118km/h |
| Maximum gradeability | ≥20% |
| Fuel consumption | 17.3L/100Km(10t) |
Q. Are you original manufacturer?
A. Yes, we’re a leading automobile enterprises in China, one of the biggest manufacturer for commercial vehicles and passenger vehicles.
Q. What kind of payment terms can be acceptable?
A. We’re flexible for payment terms, including T/T, L/C, D/P, O/A and of course Cash.
Q. What’s your minimum Order quantity?
A. 1 unit.
Q. What’s your supportive policy for distributors in overseas market?
A. We support in many aspects including marketing, promotion, product development/improvements, service training, advertising, etc.
Q. Do you have experience of CKD or IKD assembly project in overseas market?
A. Of course, we already have KD assembly plants in area of Southeast asia and South America.
